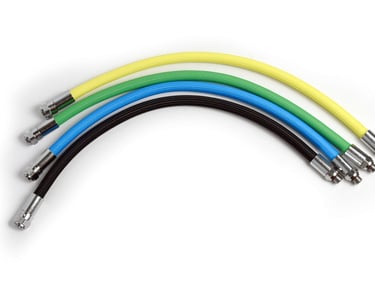

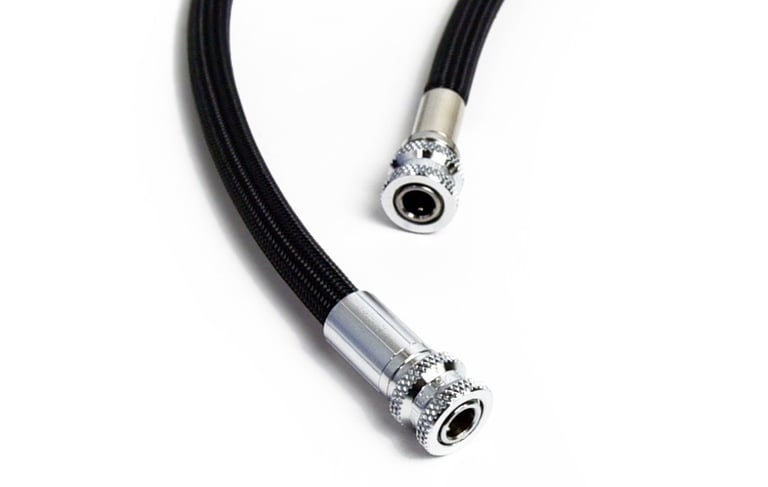

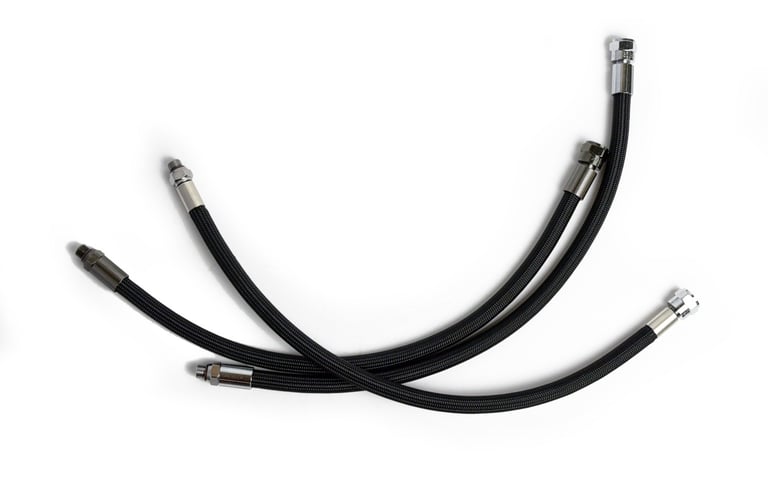

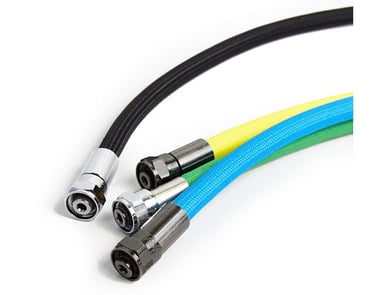

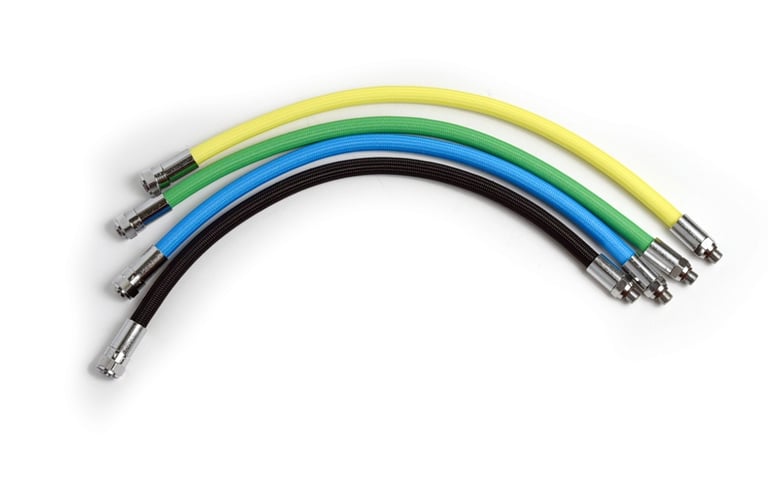

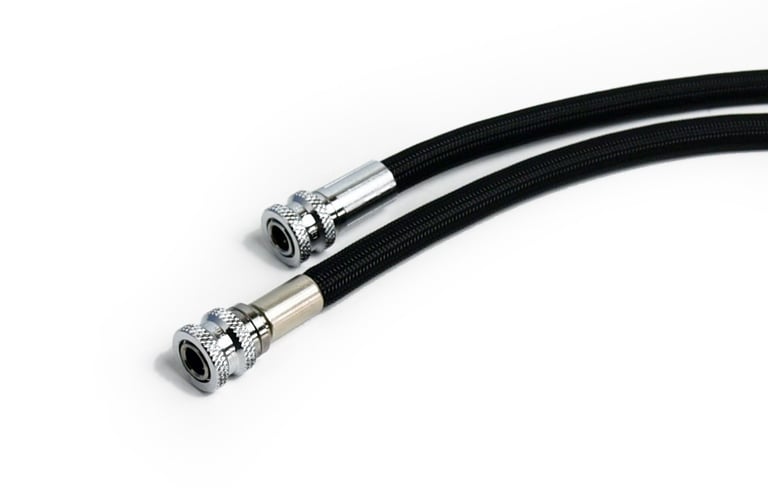

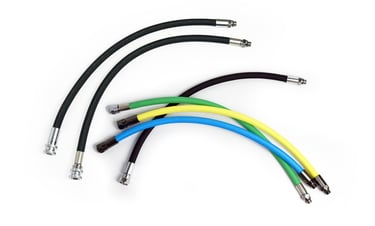

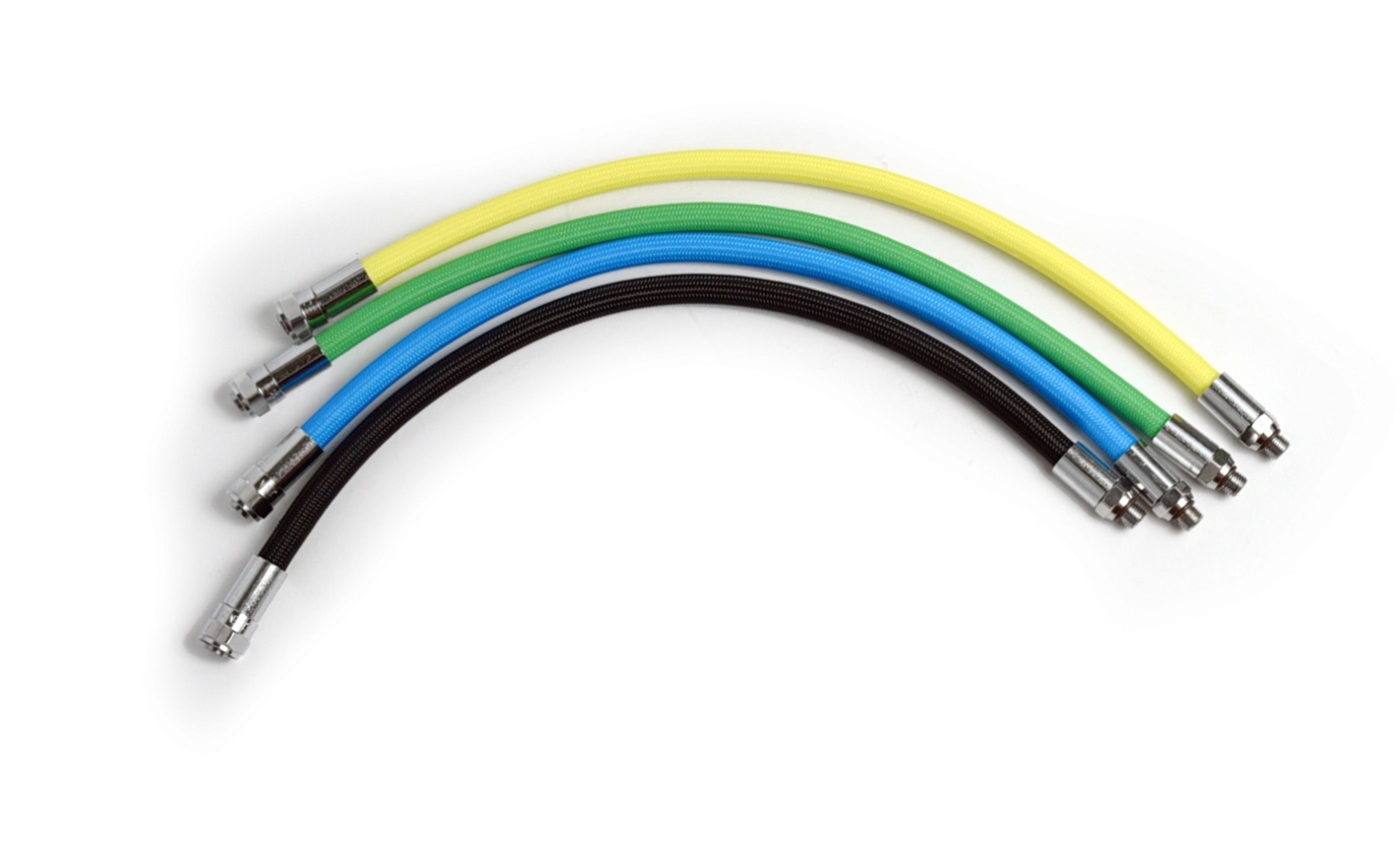

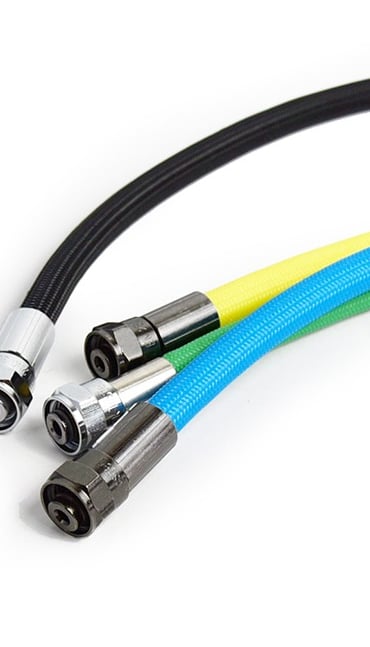

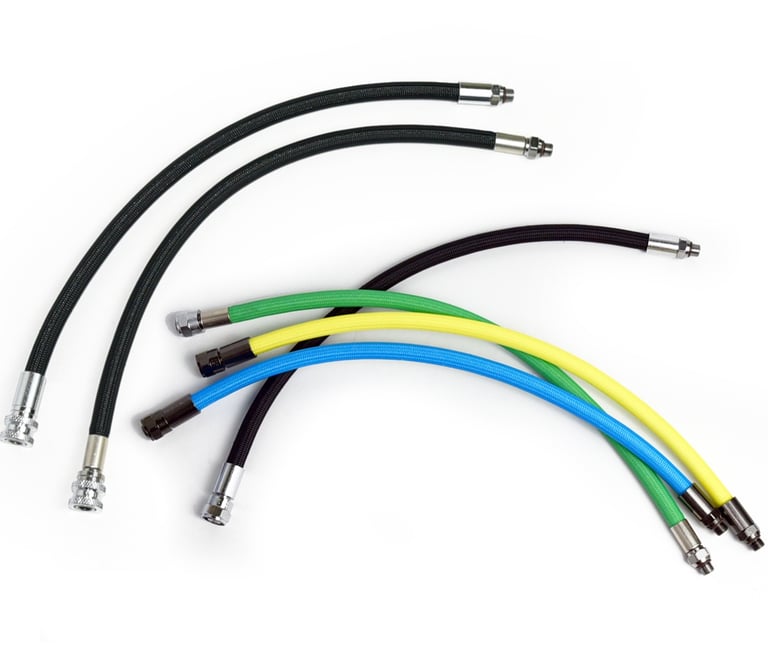

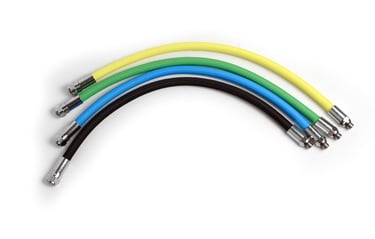

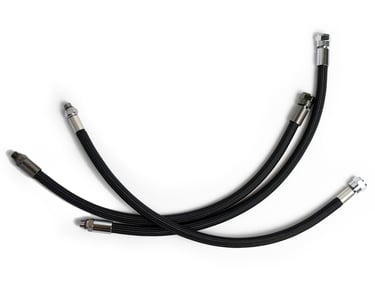

LP150

LP mid/ low pressure scuba diving hose

for scuba diving regulator/ octopus/ BC/ inflator, 2nd stage

black blue and yellow textile

SPECS

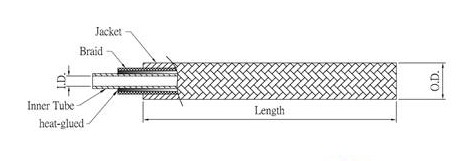

◆ ID / OD : 6.5 / 12 (mm)

◆ W.P. / B.P. : 1500 / 6,000 (psi)

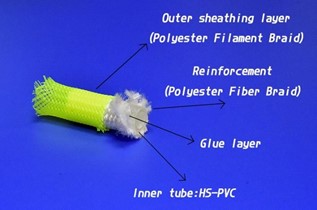

◆ INNER TUBE : HS-PVC

◆ BRAIDING : POLYESTER

◆ JACKET (COATING) : POLYESTER MONO FILAMENT

◆ FITTING TENSILE STRENGTH : 195 kgf/cm²

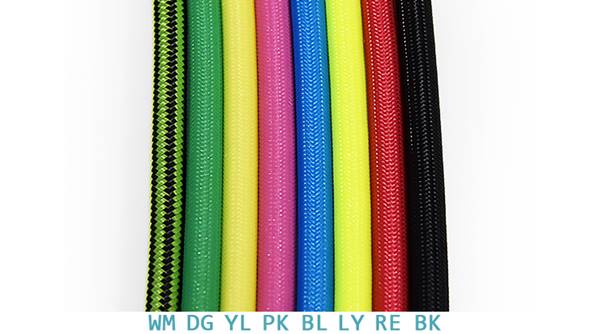

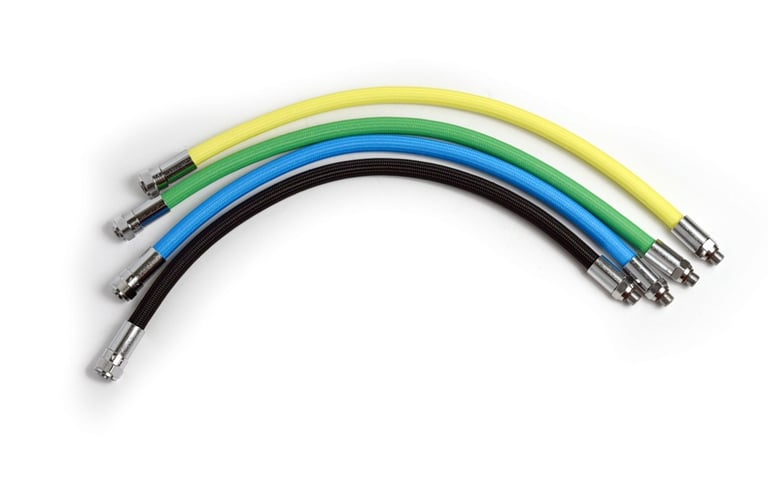

◆ COLOR :

Black(BK) / Yellow(YL) / Pink (PK) / Blue(BL) / Green(DG) / Red(RE) / Florescent Yellow(LY) / Watermelon (WM)

black blue and yellow textile

FEATURES

◆ Extremely soft hose prevent the divers from jaw fatigue while using.

◆ Easy to clean and maintain.

◆ water resistance for Polyester double braiding is better than Nylon braided jacket.

◆ Firmly glued inner tube and braiding jacket is a lot stronger when extending.

◆ Fluent air flow comparing with rubber tube.

◆ 100% leak testing before shipment.

◆ HS-PVC inner tube provides a longer service period comparing with PU base hoses.

black blue and yellow textile

HS-PVC DATA SHEET

◆ Density (ASTM 297, 23℃ ) :

1.08 (g/cm³)

◆ Hardness (ASTM 2240) : 75 (Shore A)

◆ Tensile Strength at Break (ASTM 412) :

50 (kg / cm²)

◆ Elongation at Break (ASTM 412) :

200 (%)

◆ 100% Modulus (ASTM 790) :

40 (kg / cm²)

◆ Tear Strength (ASTM 624) :

28 (kg / cm²)

◆ Low Temerature Brittleness

(ASTM 746) : -40 (℃)

◆ Max. Temerature/ Intermittent

(ASTM 746) : 150 (℃)

◆ Service Temerature (ASTM 746) :

135~ -30 (℃)

black blue and yellow textile

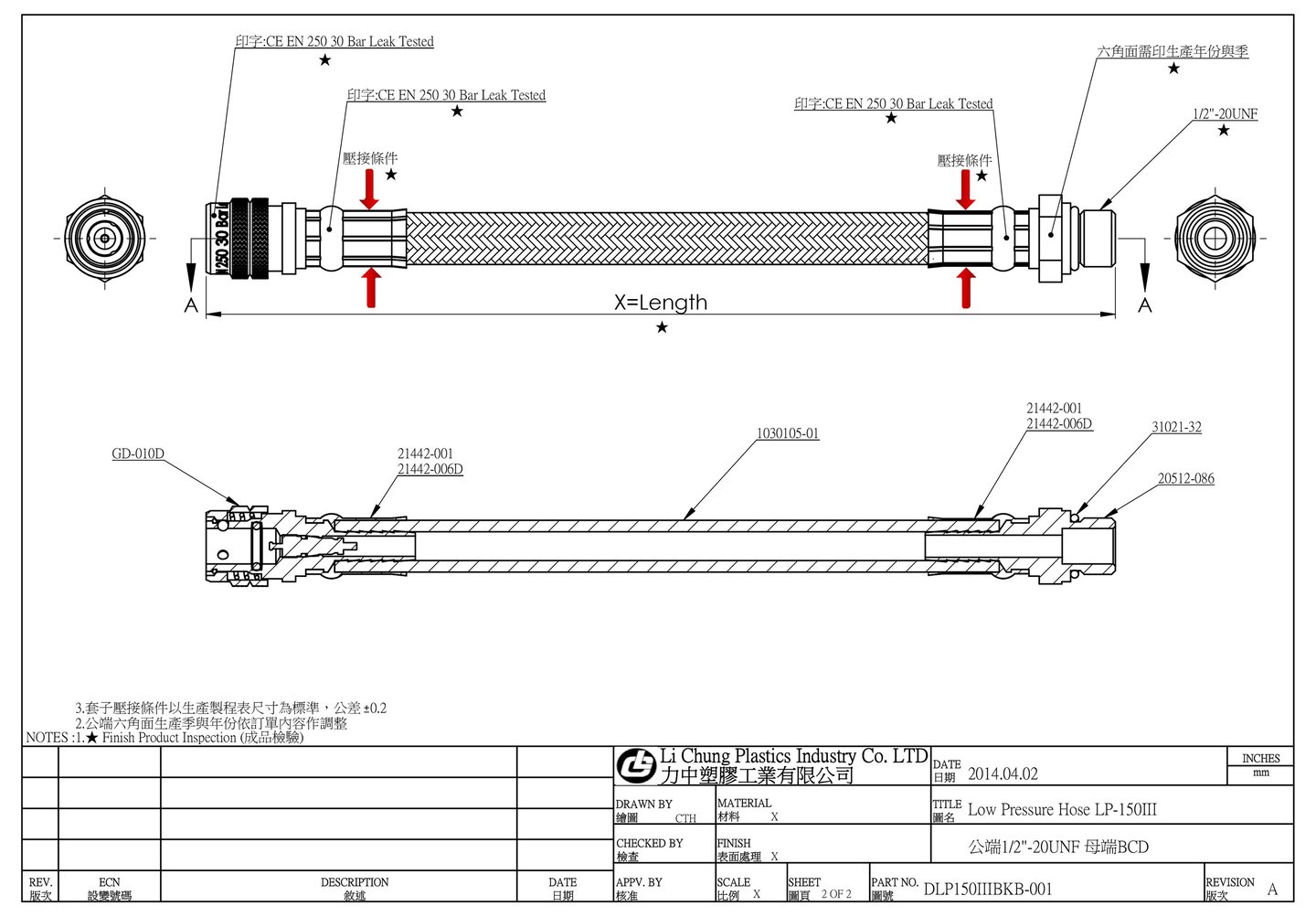

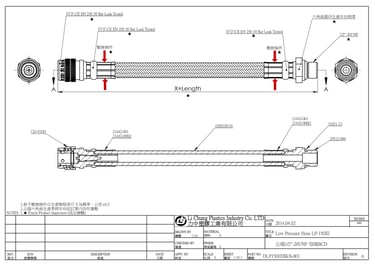

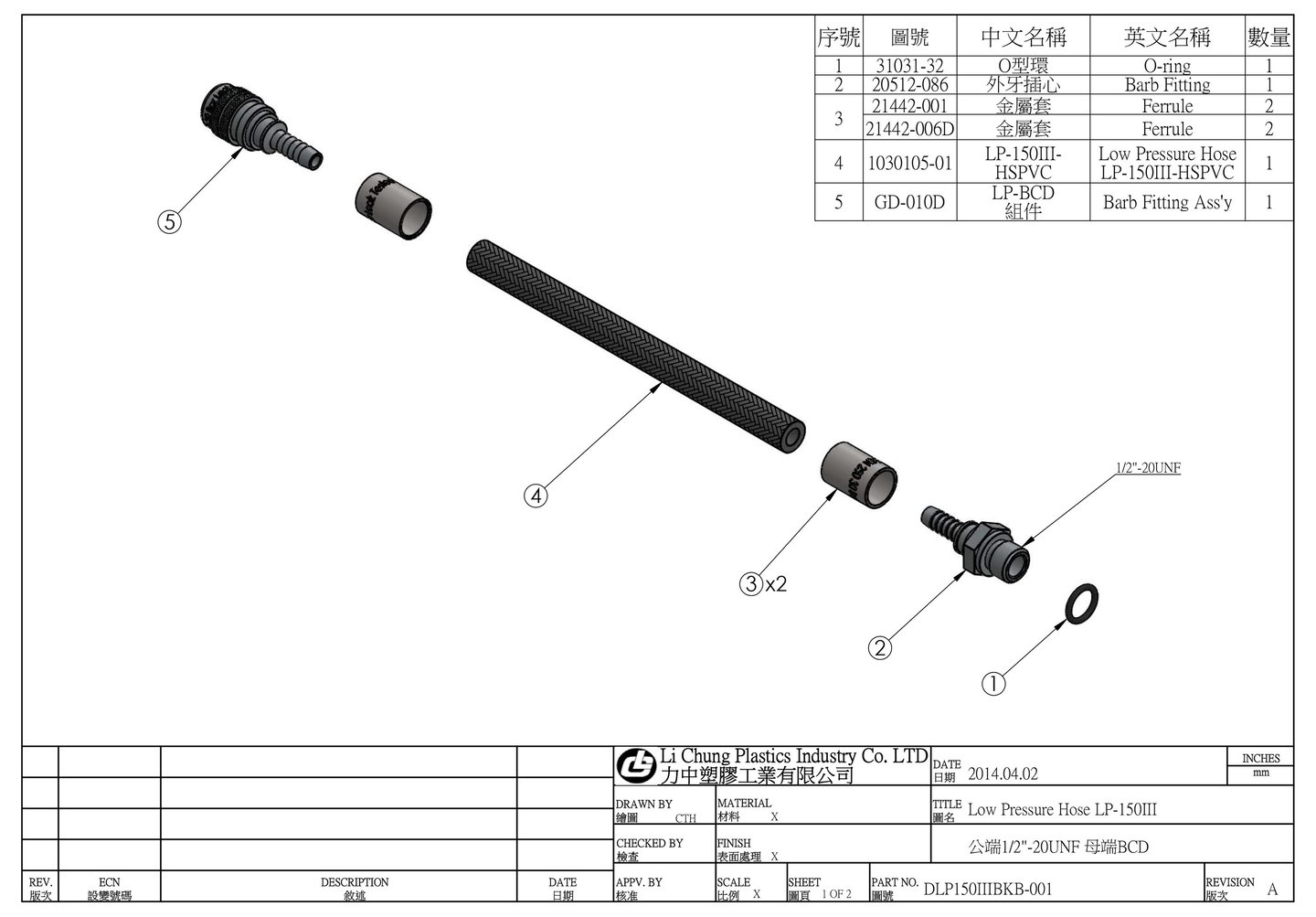

LP-150

(Assembly + Leak Test + Pulling Tensile Test)
