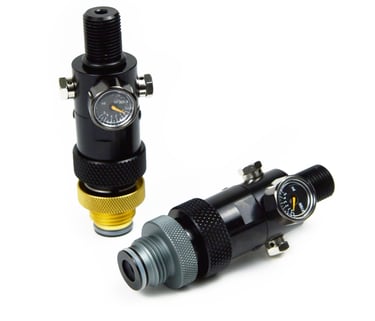

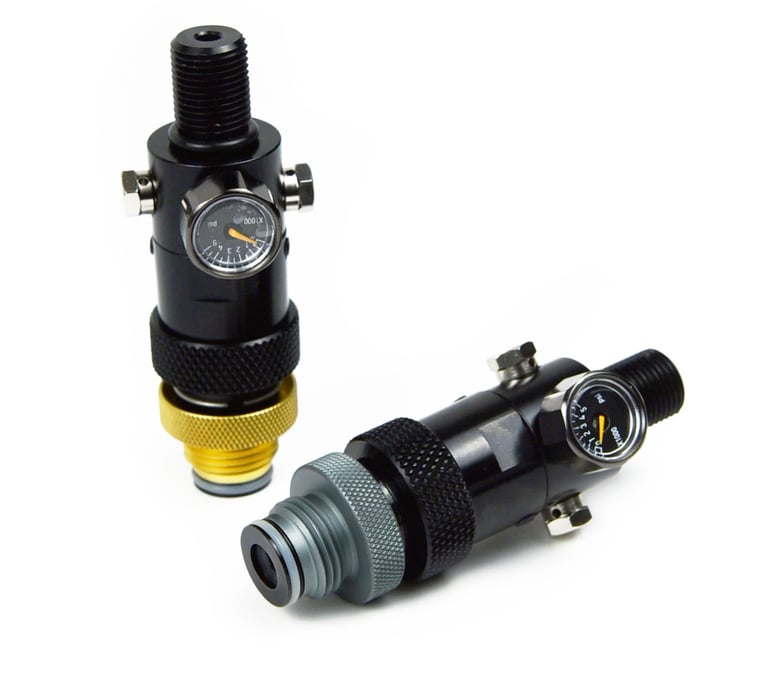

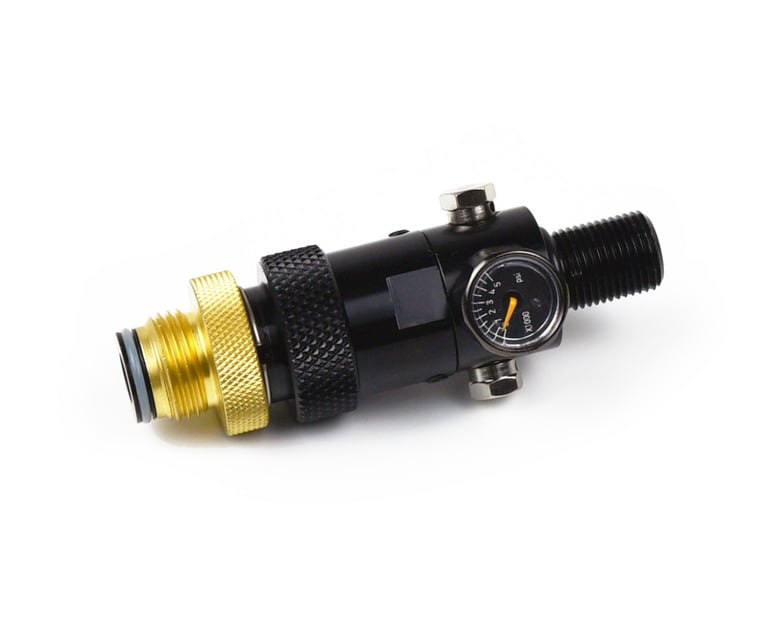

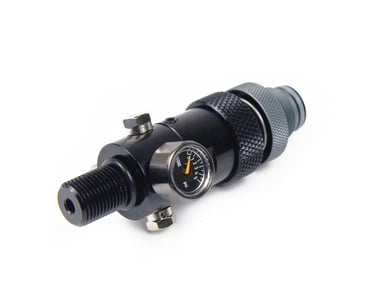

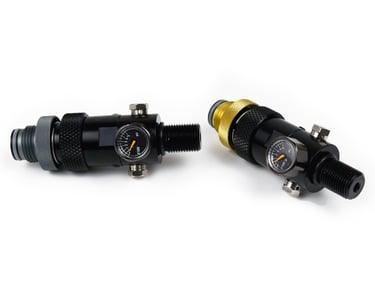

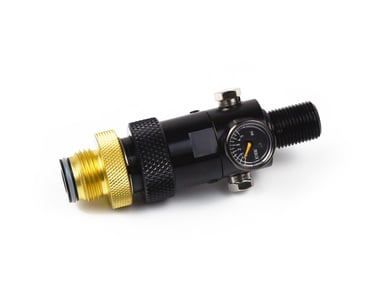

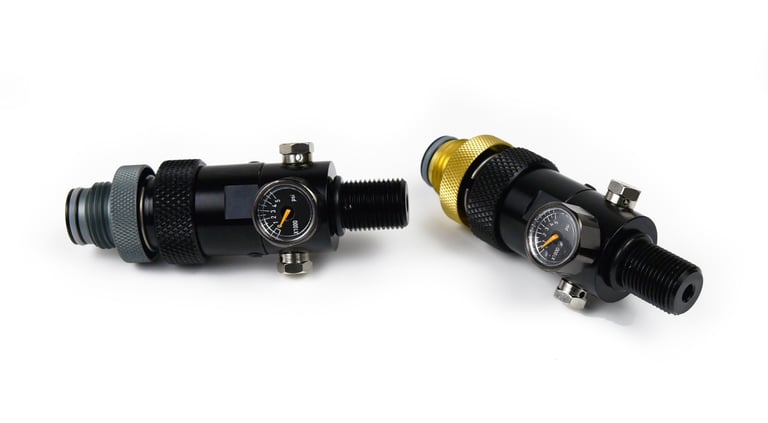

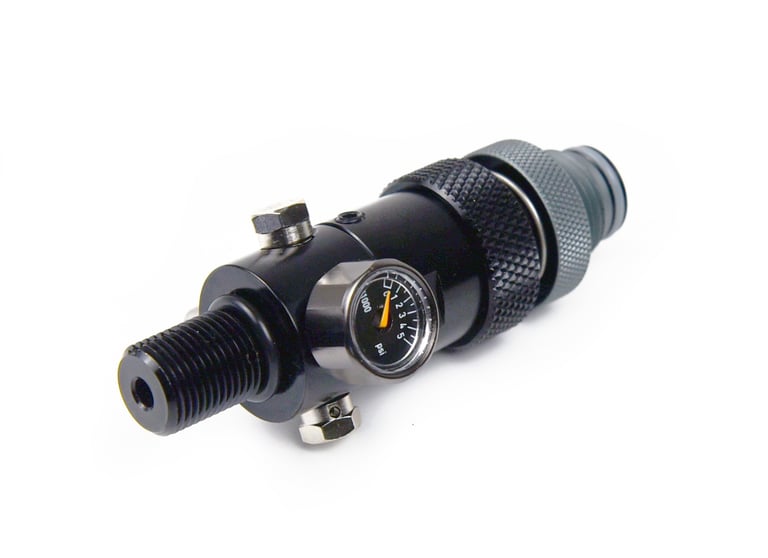

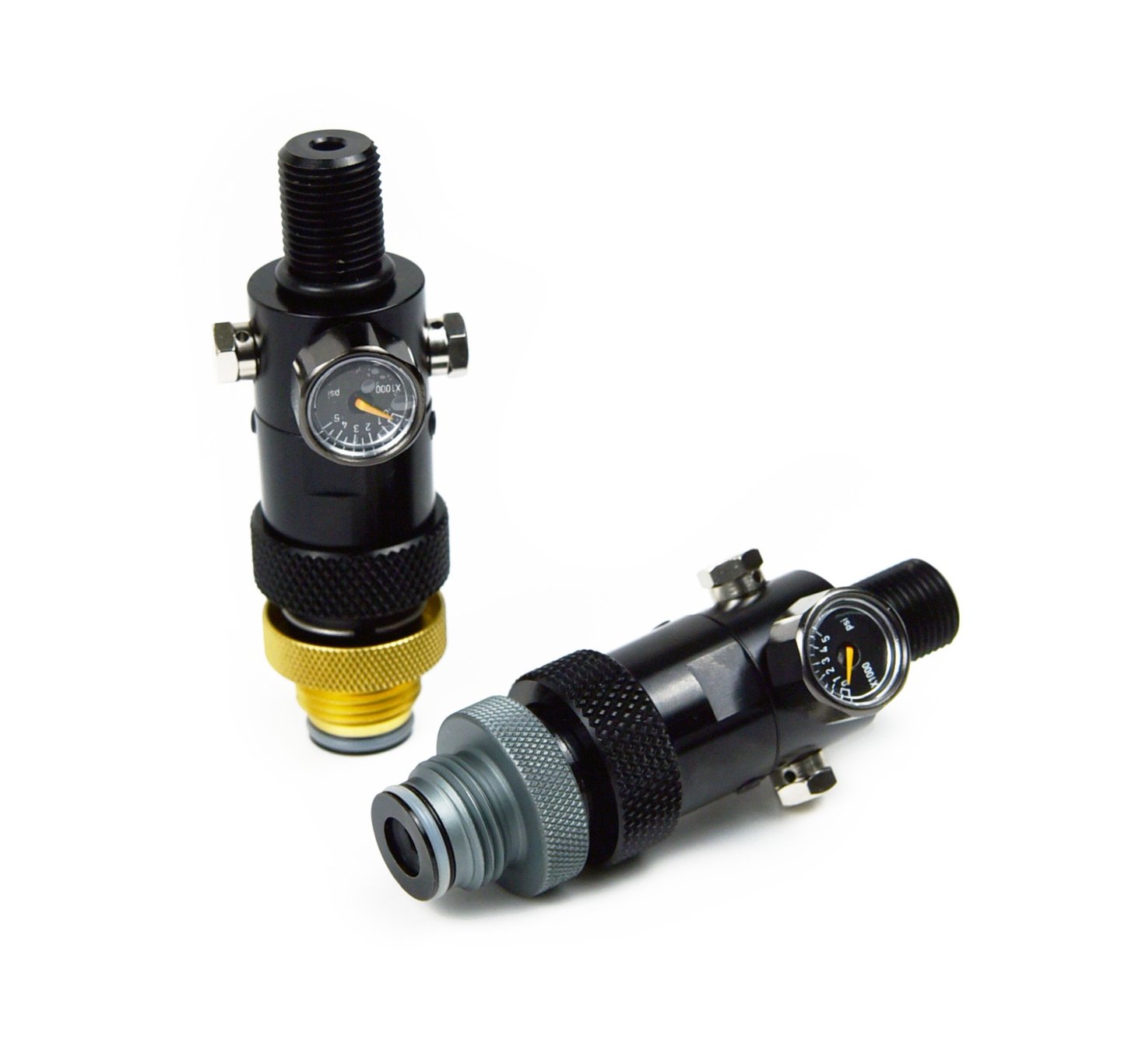

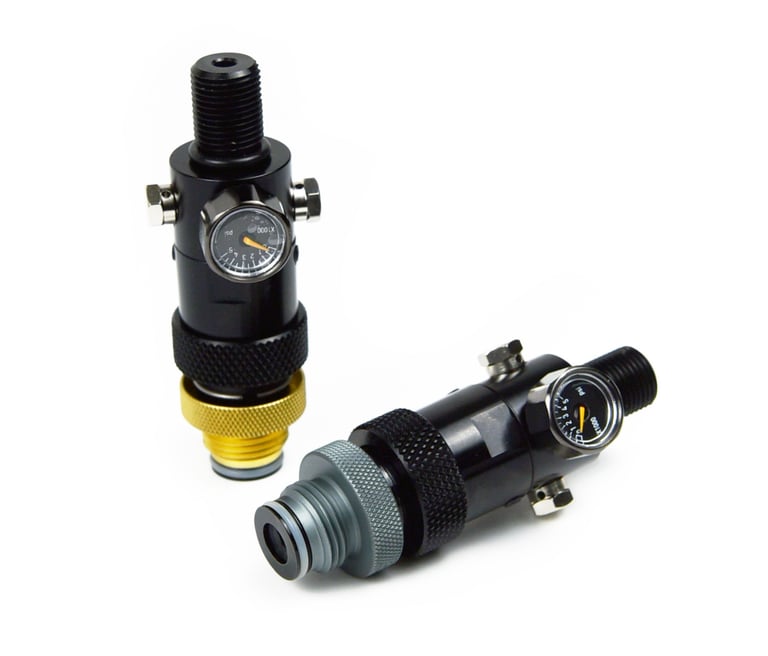

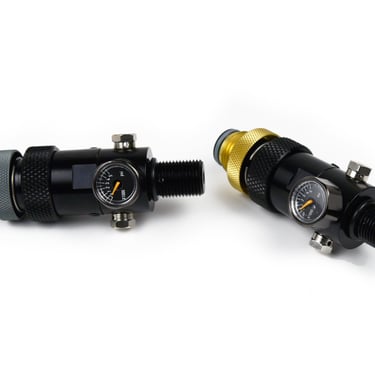

ON/OFF + 360° Type

3000/4500 PSI

SPECS

◆ Customized Output Pressure : 300 ~ 2000 psi

◆ Body Material : T6061

◆ Bonnet Thread : 0.825-14T

◆ Body Thread : 5/8"-18UNF

◆ Gauge Thread : 3/8"-24UNF

◆ Fill Nipple Thread : 3/8UNF

◆ Burst Disk Thread : 3/8UNF

◆ Bonnet Screw Thread : No.10-32UNF

FEATURE

◆ User-friendly ON/OFF switch function

It is normal that the force resistance makes it difficult to push the switch. Simply screw CLOCKWISE a bit while gently pushing it upwards or

downwards would resume normal operation
